Push Lock Hose for Gas, Oil, Air Water

Name: Push Lock Hose for Gas Oil Air Water
Brand: Passion
Price: 2.5 USD

Push Lock Hose for Gas, Oil, Air Water Manufactures

Brand Name : Passion

Model Number : PPD

Certification : CE ISO9001

Place of Origin : Zhejiang, China

MOQ : 1000m

Price : 2.5 USD/meter

Payment Terms : T/T,MoneyGram,L/C

Supply Ability : 100,000 meters per month

Delivery Time : 20 days

Packaging Details : Wrapped in plastic film

Color : Available in blue, gray, or custom colors upon request.

Available Sizes : 1/4", 5/16", 3/8", 1/2", 5/8", 3/4", 1"

Material : High-quality synthetic rubber

Applications : Suitable for gas, oil, air, and water transfer

Working Pressure : 2 MPa / 20 bar / 300 PSI

Temperature Range : From -30°C to +120°C (-22°F to +248°F)

Reinforcement Layer : Braided with high-tensile polyester fiber for added strength and flexibility.

Contact Now

Push Lock Hose | 300 PSI Multipurpose Hose for Fuel, Air, and Fluids

Sizes Available: 1/4" to 1" | No-Clamp Installation | Built for Tough Jobs

What It Is

The Push Lock Hose (also known as Push-On or Push-Lock hose) is designed for quick and secure assembly without the use of external clamps. It offers reliable performance at 300 PSI, high flexibility, and extended lifespan, making it a perfect fit for challenging industrial environments.

Why Choose This Hose?

No Clamps Needed
Simply push onto the fitting — installation is tool-free and fast.
Oil-Resistant Core
The inner tube is made from NBR rubber, meeting RMA Class A standards for oil, fuel, and gas resistance.
Tough Outer Cover
The outer layer uses CSM rubber, engineered for superior abrasion, UV, and weather protection.
Ultra Flexible & Long-Lasting
Withstands 5 million bending cycles, ideal for equipment with continuous motion or friction.
Broad Temperature Range
Functions from -30°C to 120°C, perfectly suited for indoor and outdoor use.
Electrical Insulation
Non-conductive hose body can resist voltages of 6000V or more — added safety in sensitive environments.

Where It Works Best

This hose is trusted in applications such as:

Automation & Robotic Arms
Injection Molding & Assembly Lines
T-Grade Welding Systems
Fluid Transfer (Air, Oil, Water, Emulsion)
Coiling Devices & Cable Spindles

Whether in a car manufacturing plant or industrial automation setup, this hose can handle the pressure — literally.

Product Standards & Specs

International Certifications: Compliant with ISO 19013 and AS 1869
4:1 Safety Factor: Ensures high-pressure security and reliability
Color Options: Standard in black, red, blue — custom colors available
Packaging: Export-ready, available in cut lengths or pallet loads per request

Construction Overview

Component	Material	Key Properties
Inner Tube	NBR Synthetic Rubber	Oil & gas resistant, RMA-A certified
Reinforcement	High-Tensile Fiber	Excellent strength & flexibility
Outer Cover	CSM Synthetic Rubber	UV, ozone, abrasion, and weather-resistant

Part No.	Size	I.D. (mm)	O.D. (mm)	Working Pressure	Burst Pressure	Min. Bend Radius	Weight (kg/m)	Standard Length
-06	1/4"	6.4	13	300 PSI	1200 PSI	50 mm	0.15	100 m
-08	5/16"	7.9	15	300 PSI	1200 PSI	60 mm	0.18	100 m
-10	3/8"	9.5	17	300 PSI	1200 PSI	70 mm	0.23	100 m
-13	1/2"	12.7	21	300 PSI	1200 PSI	120 mm	0.31	100 m
-16	5/8"	15.9	24	300 PSI	1200 PSI	150 mm	0.38	60 m
-19	3/4"	19	28	300 PSI	1200 PSI	170 mm	0.5	60 m
-25	1"	25.4	36	300 PSI	1200 PSI	200 mm	0.74	60 m

Summary

Looking for a hose that’s easy to install, built to last, and ready for demanding environments?
This Push Lock Hose delivers unmatched performance for OEMs, automation integrators, and industrial users alike.

Customized packaging, private labeling, and bulk order options are available.

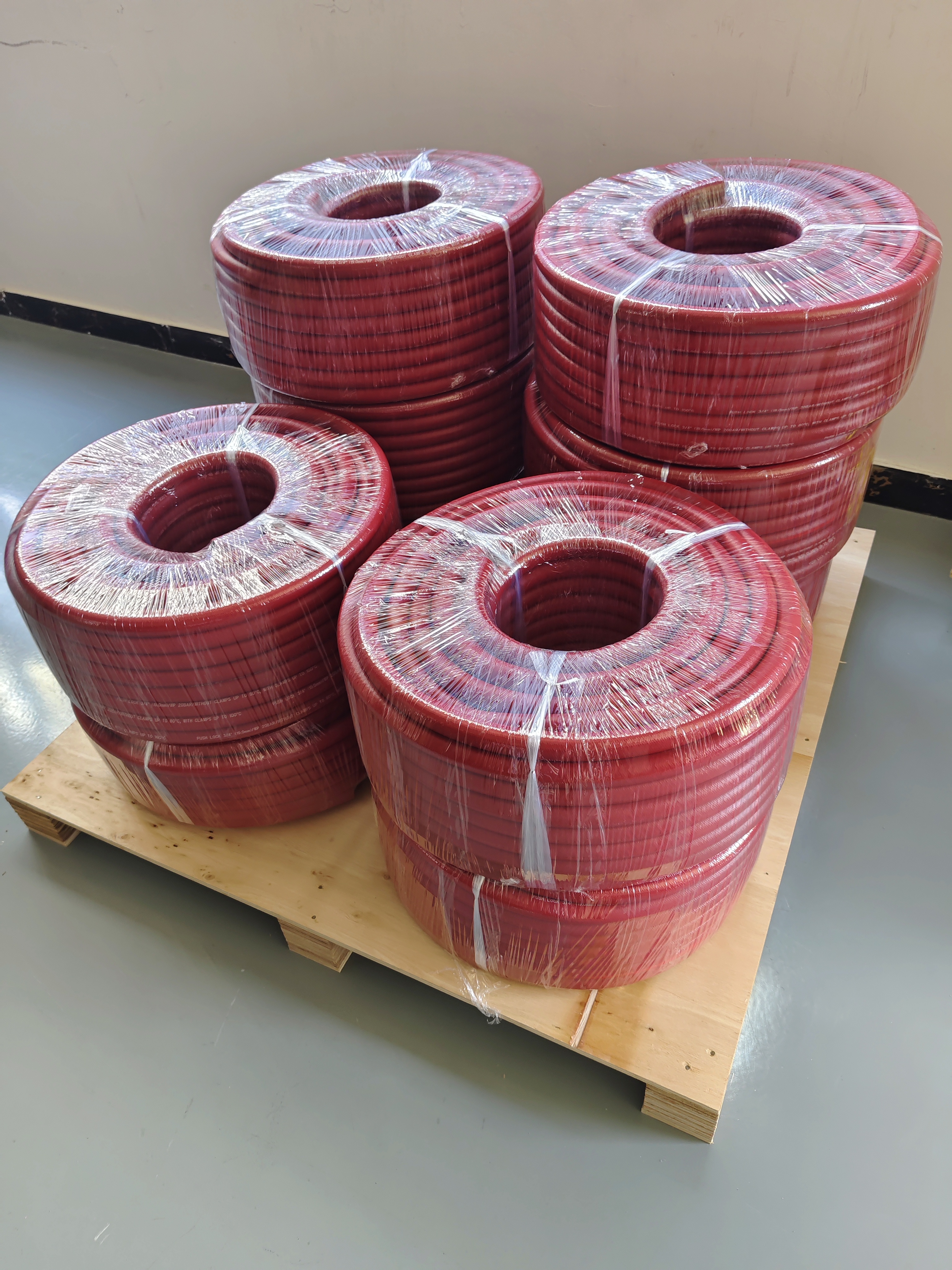

Push Lock Hose for Gas, Oil, Air Water Images
