Smooth Bore PTFE Braided Hose for High Temperature Resistence

Hangzhou Paishun Rubber & Plastic Co., Ltd
Trust Seal
Verified Supplier
Credit Check
Supplier Assessment
Contact Now

Smooth Bore PTFE Braided Hose for High Temperature Resistence

Brand Name : PASSIONCOHOSE

Model Number : PTFE Hose, SAE 100R14

Certification : ISO 9001-2015, CE, RoSH, REACH, FDA

Place of Origin : China

MOQ : 200M

Price : Negotiable

Payment Terms : L/C, , T/T, Western Union, MoneyGram

Supply Ability : 300000M/Month

Delivery Time : within 25days after we have received the advanced payment

Packaging Details : Woven strips, pallet, carton, etc. We can also make package according to your requirements.

PTFE Hose Market : North America, Europe, South America

Material : PTFE

ID : 1/8" ~ 1"

Inner tube : Extruded Smooth PTFE

Cover : SS 304 single wire braid

Temperature : -60℃ ~ +260℃

W.P : 179.5bar-48.8bar

B.P : 718bar-195bar

Customization Options : Color, length, end fittings, braid material, etc.

Packing : woven strips, pallet, carton

Fittings : OEM

Contact Now

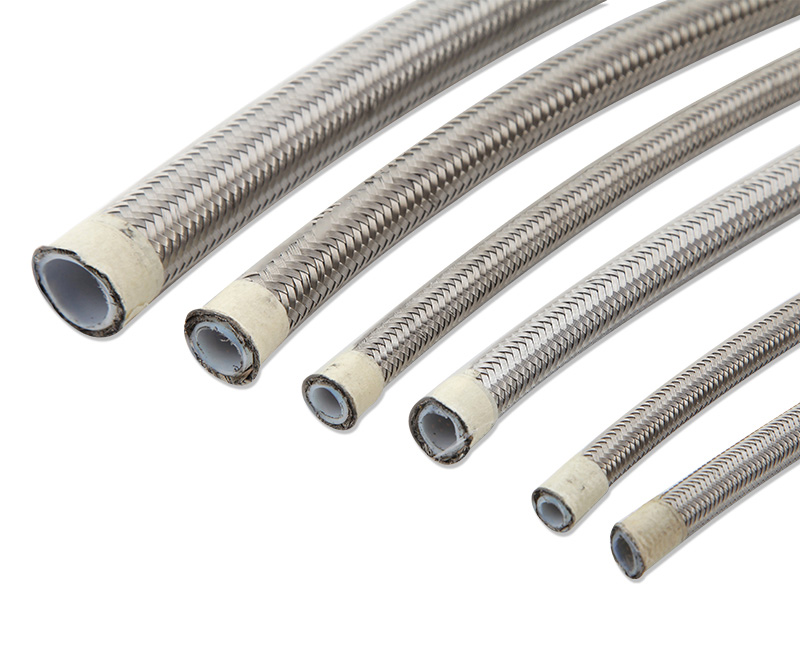

Smooth Bore PTFE Braided Hose for High Temperature Resistance

Description:

Smooth Bore Stainless Steel Braided PTFE Hoses

Inner tube: Smooth bore PTFE
Out Cover: Stainless Steel 304 or 316 Wire Braided
Temperature Range: -65℃ ~ +260℃
Standard: SAE 100R14
Feature: Excellent chemical resistance, high and low temperature resistance, excellent corrosion resistance, non-stick surface, flexibility, high purity, electrical insulation.

All braided PTFE hoses can increase Anti-Static performance with carbon treatment.

Part-number

Inner Diameter

I.D. (mm)

O.D. (mm)

Bending Radius
(mm)

Min.W.P
(bar)

Min. B.P.
(bar)

PR14-021/8"3.26.7162501000
PR14-033/16"5.07.620205820
PR14-041/4"6.59.427188752

PR14-05

5/16''

8.0

11.1

27

162

648

PR14-06

3/8''

10.0

13.2

33

130

520

PR14-08

1/2''

13.016.266112448
PR14-105/8"16.3

19.4

150

80

320

PR14-12

3/4''

19.0

23.0

226

70

280

PR14-147/8"22.526.224560240

PR14-16

1''

25.4

29.8

300

50

200
