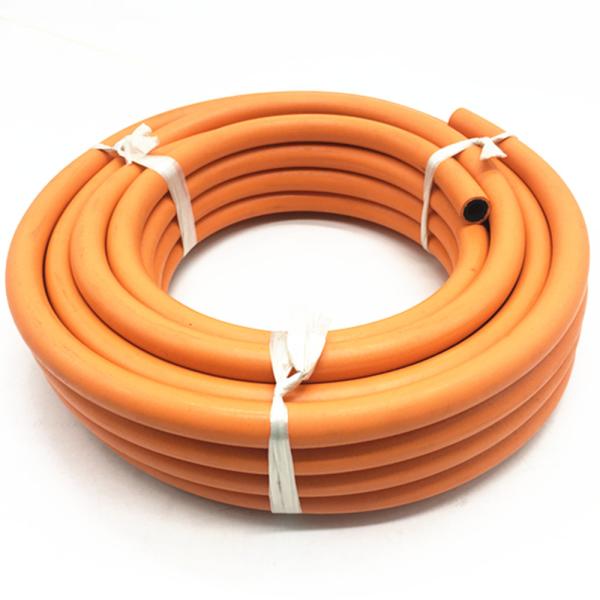

10mm Good Permeability NBR Material Rubber Gas Hose for LPG
Gas Hose Assembly (smooth surface)
Hose Construction: Tube: NBR synthetic rubber.
Reinforcement: Polyester fiber braided.
Cover: EPDM synthetic rubber.
Temperature: -30℃ - +80℃
Color: Black, orange etc.
Application: Mainly used for conveying of gas or LPG for household fuel gas system or industrial
equipment system.
Standard length: 2m, 5m or as customers’ request.
Fitting type: Brass or iron 3/8” left thread female
Test Report of Gas Hose from Zoe Paishun.pdf
Hose Specification:
| Inner Diameter | Outer Diameter | Working Pressure | Burst Pressure | Length |
| inch | mm | mm | bar | psi | bar | psi | m |
| 1/4" | 6 | 13 | 20 | 300 | 60 | 900 | 100 |
| 5/16" | 8 | 15 | 20 | 300 | 60 | 900 | 100 |
| 3/8" | 10 | 16 | 20 | 300 | 60 | 900 | 100 |
| 1/2" | 13 | 20 | 20 | 300 | 60 | 900 | 100 |
Fitting Type and product photos:
3/8" Female left-hand brass fittings.
If you need other sizes and fittings, please feel free to contact us.
Packing & Delivery:
To better ensure the safety of your goods, professional, environmentally friendly, convenient and efficient packaging services will be provided.
Company Profie:
Suqian Paishun Hose Technology Co., Ltd. is located in Suqian Industrial Zone, the native place of Lord Xiang Yu of Western Chu County before the Qin Dynasty. Its plant zone is a pleasant place with easy access by different ways of transport, 70KM to Lianyungang Sea Port, 60KM to Xuzhou International Airport.
The factory covers a land of over 3 hectares, and the workshops occupy a surface of 25000 square meters. We own complete production lines of rubber mixing process, cold feeding material extrusion process, micro wave vulcanization process, and high speed braiding process, etc.
Certifications:
Paishun has various types of certificates, such as ISO9001, CE, RoHS, etc.
Test Machines:
Product testing is carried out on both raw materials and final product.
Rubber raw materials used in the production of our products are tested and validated in our laboratory.
Every production batch of gas hose is tested to ensure the dimension, tensile, burst pressure, temperature resistance, etc.
FAQ:
1.Q:Are you a factory or trading company?
A:We are a factory for over 13 years.
2.Q:Where is your factory located? How can I visit there?
A:Our factory is located in Hangzhou City, Zhejiang Province, China, about 1.5 hours train from Shanghai.
All our clients, from home or abroad, are warmly welcome to visit us!
3.Q:How can I get some samples?
A: We are honored to offer you samples.
4.Q:How does your factory do regarding quality control?
A. Quality is priority. PASSION always attach great importance to quality controlling from the beginning to end. Our factory has gained CE, ISO, SGS etc.
Product Tags:
|
|
ISO 3821 Standard 10mm 300psi Lpg Gas Hose Images
|
