Single Textile Braid Reinforced Hydraulic Rubber Hose J517 SAE 100R6
Description:
Standard: SAE J517
Construction
This Hose consists of
1) An inner tube of oil-resistant synthetic rubber.
2) Single textile braid reinforcement.
3) An oil and weather-resistant synthetic rubber cover.
Temperature: -40℃ - +100℃
Color: Black
Standard length: 100m,50m, etc
Fitting: 00110 ferrules and 1 serious crimping fitting.
Specifications:
Single Textile Braid Reinforced Hydraulic Rubber Hose J517 SAE 100R6
| Item code | I.D | O.D | W.P | B.P | Length | Min. Bend Radius | Weight |
| | inch | mm | mm | bar | psi | bar | psi | m | mm | kg/m |
| P03-R6 | 3/16" | 4.8 | 11.2 | 34 | 493 | 136 | 1972 | 100 | 50 | 0.09 |
| P04-R6 | 1/4" | 6.4 | 13 | 28 | 406 | 112 | 1624 | 100 | 65 | 0.11 |
| P05-R6 | 5/16" | 8 | 14.3 | 28 | 406 | 112 | 1624 | 100 | 80 | 0.13 |
| P06-R6 | 3/8" | 9.5 | 16 | 28 | 406 | 112 | 1624 | 100 | 80 | 0.15 |
| P08-R6 | 1/2" | 12.7 | 19.8 | 28 | 406 | 112 | 1624 | 100 | 100 | 0.22 |
| P10-R6 | 5/8" | 16 | 22.8 | 24 | 348 | 96 | 1392 | 50 | 125 | 0.26 |
| P12-R6 | 3/4" | 19 | 27 | 21 | 305 | 83 | 1205 | 50 | 150 | 0.30 |
| P16-R6 | 1" | 25.4 | 35.5 | 20 | 290 | 80 | 1160 | 50 | 170 | 0.45 |
Application:
This section covers Hose for use with petroleum base hydraulic fluids within a temperature range of -40C-+100C.
Competitive Advantage:
It is made according to SAE J517 / DIN EN 853 standard.
We have several ways of hydraulic hose packaging for our customers:
- Colorful poly stripes (normal packing)
- reel
- customized carton hose assembly
- customized PE bag for hose assembly
We supply OEM, ODM according to customer’s requirement.
The hydraulic hoses and fittings can be assembled in our factory.
We also supply hose protector for our customers.
Product Tags:
|
|

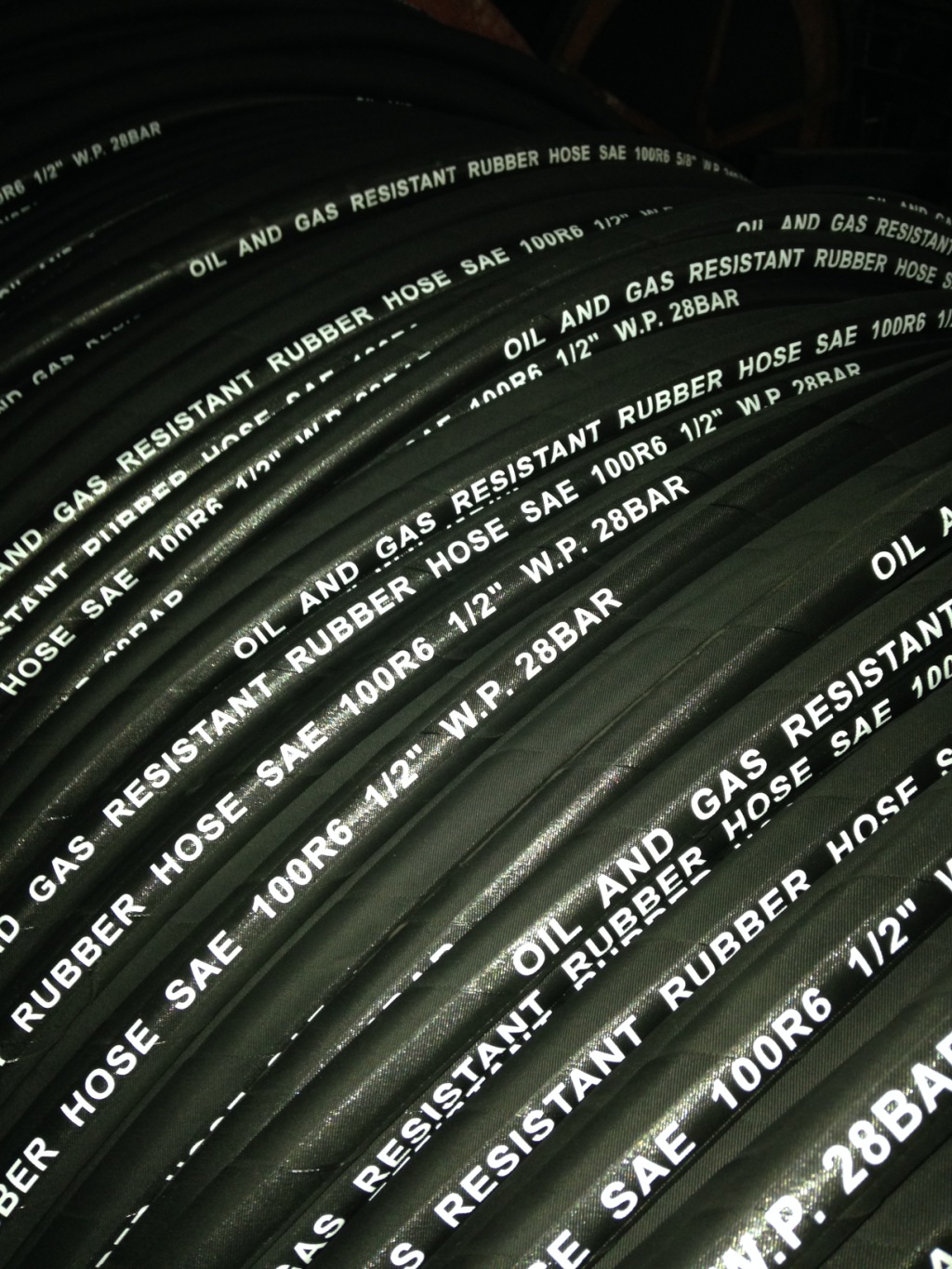

Single Textile Braid Reinforced Hydraulic Rubber Hose J517 SAE 100R6 Black Images
|
